Docker从入门到入土详解与部署

1

uname -r

1

yum ‐y update

1

sudo yum remove ‐y docker*

1

yum install ‐y yum‐utils

1

yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

1

yum makecache fast

1

yum list docker‐ce ‐‐showduplicates | sort ‐r

1

yum install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

1

systemctl start docker && systemctl enable docker

1
2
3
4
5
6
7
8
9
10

# 启动docker
systemctl start docker
# 停止docker
systemctl stop docker
# 重启docker
systemctl restart docker
# 设置开机自启
systemctl enable docker
# 执行docker ps 命令，如果不报错，则说明安装启动成功
docekr ps

1

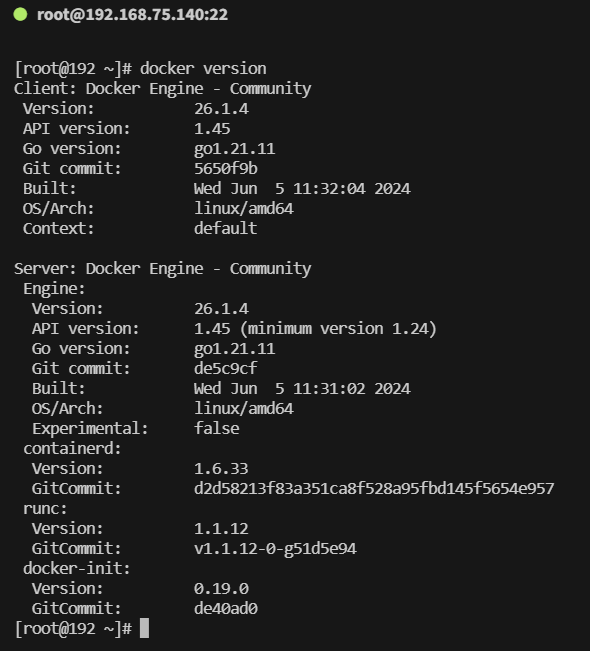

 docker version

1

 cd /etc/docker

1

 vim daemon.json

1
2
3
4
5
6
7
8
9
10
11
12
13
14

{
    "registry-mirrors":
    [
    	## 下面是在网上找的其他的镜像加速器，以防止阿里云官方dockerhub找不到我们想要的镜像或版本
        "https://do.nark.eu.org",
        "https://dc.j8.work",
        "https://docker.m.daocloud.io",
        "https://dockerproxy.com",
        "https://docker.mirrors.ustc.edu.cn",
        "https://docker.nju.edu.cn",

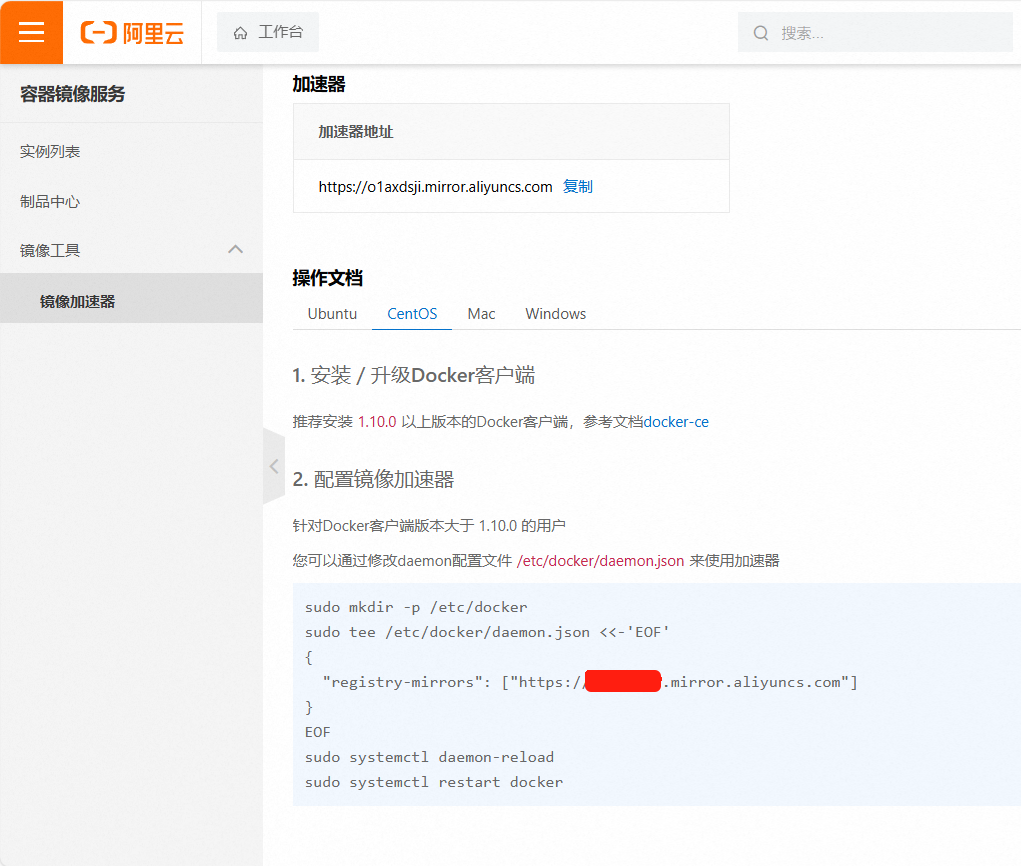

        ## 下面这个换成你在阿里云官方的镜像加速器，每个人的都不一样
        "https://ali.mirror.aliyuncs.com"
    ]
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
    "registry-mirrors":
    [
        "https://do.nark.eu.org",
        "https://dc.j8.work",
        "https://docker.m.daocloud.io",
        "https://dockerproxy.com",
        "https://docker.mirrors.ustc.edu.cn",
        "https://docker.nju.edu.cn",
        "https://ali.mirror.aliyuncs.com"
    ]
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker

1
2
3

cd /etc/docker
ll
cat daemon.json

1
2
3
4

yum remove ‐y docker\*
rm ‐rf /etc/systemd/system/docker.service.d
rm ‐rf /var/lib/docker
rm ‐rf /var/run/docker

1

 docker search java

1

docker pull openjdk:8

1

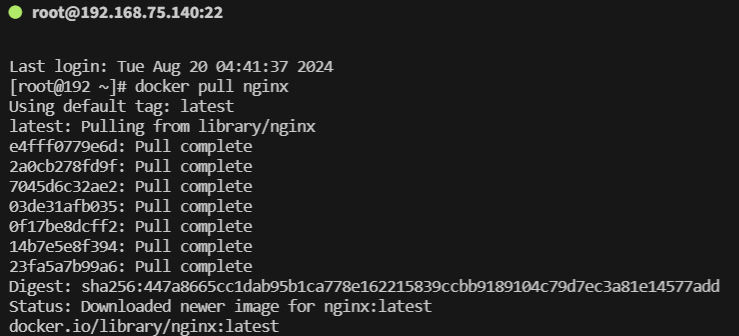

docker pull nginx

1

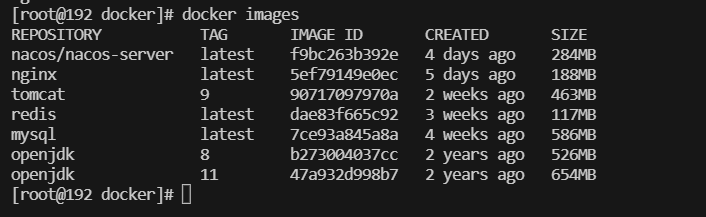

docker images

1

docker rmi java

1

1 docker rmi $(docker images -q)

1

docker ps

1

docker stop b7f5357d15f3

1

docker kill b7f5357d15f3

1

docker start b7f5357d15f3

1

docker inspect b7f5357d15f3

1

docker container logs f0b1c8ab3633

1

1 docker top b7f5357d15f3

1

docker cp b7f5357d15f3:/etc/nginx/nginx.conf /data/nginx

1

 docker cp 要拷贝的宿主机文件路径 容器id:要拷贝到容器里面对应的路径

1
2

docker exec -it b7f5357d15f3 /bin/bash
# (有的容器需要把 /bin/bash 换成 sh)

1
2
3
4
5
6

apt-get update
apt-get install vim # 安装vim
apt-get install iputils-ping # 安装ping
apt-get install net-tools # 安装ifconfig

apt-get update && apt-get install -y vim iputils-ping net-tools

1

docker rm b7f5357d15f3

1

docker rm -f $(docker ps ‐a ‐q)

1

docker rm -f b7f5357d15f3

1
2
3
4
5
6
7

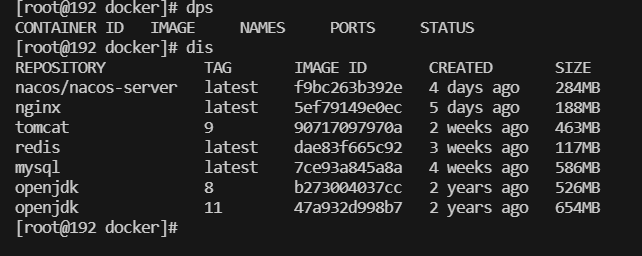

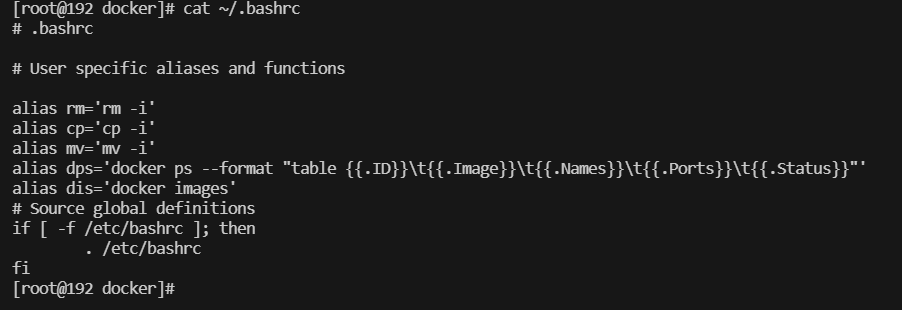

# 第一步
vi ~/.bashrc
# 进入后添加
alias dps='docker ps --format "table {{.ID}}\t{{.Image}}\t{{.Names}}\t{{.Ports}}\t{{.Status}}"'
alias dis='docker images'
# 最后一步
source ~/.bashrc

1

docker system prune -a

1

docker tag seataio/seata-server seata

1
2
3
4
5
6
7
8
9

docker run -d \
--name mysql \
--restart=always \
-p 3306:3306 \
-e TZ=Asia/Shanghai \
-e MYSQL_ROOT_PASSWORD=123456 \
-v /data/local/mysql/data:/var/lib/mysql \
-v /data/local/mysql/conf:/etc/mysql/conf.d \
mysql:8.0.34

1

docker network create default_network

1

docker network inspect default_network

1

docker network ls

1

docker network rm default_network

1

docker network ls

1

sudo curl -L "https://github.com/docker/compose/releases/download/v2.20.0/docker-compose-linux-x86_64" -o /usr/local/bin/docker-compose

1

sudo chmod +x /usr/local/bin/docker-compose

1
2
3
4

docker-compose --version

# 输出一下内容
Docker Compose version v2.20.0

1
2
3
4

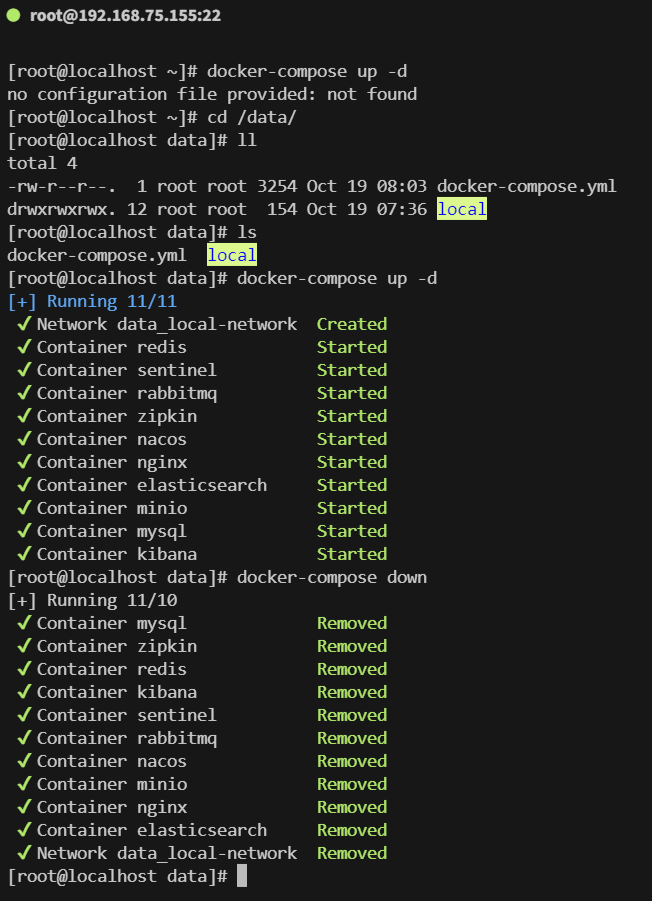

# 运行
docker-compose up -d
# 停止
docker-compose down

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

version: '3.8'

services:
  minio:
    image: minio/minio:latest
    ports:
      - "9000:9000"  # MinIO Web 界面
    volumes:
      - /data/local/minio:/data  # 持久化 MinIO 数据
    networks:
      - local-network

networks:
  local-network: # 自定义网络名称
    driver: bridge # 创建统一网络（桥接模式）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169

version: '3.8'

services:
  mysql:
    image: mysql:8.0.34
    container_name: mysql
    environment:
      MYSQL_ROOT_PASSWORD: root  # 使用官方默认密码
    ports:
      - "3306:3306"
    networks:
      - local-network
    volumes:
      - /data/local/mysql:/var/lib/mysql
    command: --default-authentication-plugin=mysql_native_password

  redis:
    image: redis:latest
    container_name: redis
    ports:
      - "6379:6379"
    networks:
      - local-network
    command: ["redis-server", "--requirepass", "redis"]  # 使用默认的 Redis 密码
    volumes:
      - /data/local/redis:/data

  nacos:
    image: nacos/nacos-server:v2.3.0
    container_name: nacos
    restart: always
    ports:
      - 8848:8848
      - 9848:9848
    environment:
      - MODE=standalone
      - SPRING_DATASOURCE_PLATFORM=mysql
      - MYSQL_SERVICE_HOST=mysql
      - MYSQL_SERVICE_PORT=3306
      - MYSQL_SERVICE_DB_NAME=nacos
      - MYSQL_SERVICE_USER=root
      - MYSQL_SERVICE_PASSWORD=root  # 使用官方默认密码
      - MYSQL_DB_PARAM=characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true&useSSL=false
    networks:
      - local-network
    volumes:
      - /data/local/nacos:/home/nacos/data

  sentinel:
    image: bladex/sentinel-dashboard:latest
    container_name: sentinel
    ports:
      - "8858:8858"
    networks:
      - local-network
    volumes:
      - /data/local/sentinel:/data

  elasticsearch:
    image: elasticsearch:7.7.1
    container_name: elasticsearch
    environment:
      - discovery.type=single-node
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    ports:
      - "9200:9200"
      - "9300:9300"
    networks:
      - local-network
    volumes:
      - /data/local/elasticsearch/data:/usr/share/elasticsearch/data

  kibana:
    image: kibana:7.7.1
    container_name: kibana
    environment:
      - ELASTICSEARCH_HOSTS=http://elasticsearch:9200
    ports:
      - "5601:5601"
    networks:
      - local-network
    depends_on:
      - elasticsearch

  rabbitmq:
    image: rabbitmq:management
    container_name: rabbitmq
    ports:
      - "5672:5672"    # 默认端口
      - "15672:15672"  # 管理控制台端口
    environment:
      RABBITMQ_DEFAULT_USER: guest  # 使用官方默认用户名
      RABBITMQ_DEFAULT_PASS: guest  # 使用官方默认密码
    networks:
      - local-network
    volumes:
      - /data/local/rabbitmq:/var/lib/rabbitmq

  minio:
    image: minio/minio:latest
    container_name: minio
    ports:
      - "9000:9000"
      - "9001:9001"
    networks:
      - local-network
    volumes:
      - /data/local/minio:/data
    command: server /data --console-address ":9001"

  zipkin:
    image: openzipkin/zipkin:latest
    container_name: zipkin
    environment:
      - STORAGE_TYPE=mysql
      - MYSQL_HOST=mysql
      - MYSQL_USER=root
      - MYSQL_PASS=root  # 使用官方默认密码
      - MYSQL_DB=zipkin
    ports:
      - "9411:9411"
    networks:
      - local-network
    volumes:
      - /data/local/zipkin:/data

  nginx:
    image: nginx:latest
    container_name: nginx
    ports:
      - "80:80"
      - "443:443"
    networks:
      - local-network
    volumes:
      - /data/local/nginx/nginx.conf:/etc/nginx/nginx.conf
      - /data/local/nginx:/usr/share/nginx/html

  mongo:
    image: mongo:4.4
    container_name: mongo
    ports:
      - "27017:27017"
    networks:
      - local-network
    volumes:
      - /data/local/mongo:/data/db

  neo4j:
    image: neo4j:latest
    container_name: neo4j
    ports:
      - "7474:7474"  # 浏览器访问端口
      - "7687:7687"  # Bolt 连接端口
    networks:
      - local-network
    environment:
      - NEO4J_AUTH=neo4j/neo4j123456  # 使用官方默认用户名和密码
    volumes:
      - /data/local/neo4j/data:/data
      - /data/local/neo4j/logs:/logs
      - /data/local/neo4j/import:/var/lib/neo4j/import
      - /data/local/neo4j/conf:/etc/neo4j

networks:
  local-network:
    driver: bridge

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

# 解决nacos Public Key Retrieval is not allowed
docker exec -it mysql bash
mysql -u root -p
ALTER USER 'root'@'%' IDENTIFIED WITH mysql_native_password BY 'root';
# 用户名和密码根据你自定义啦填写

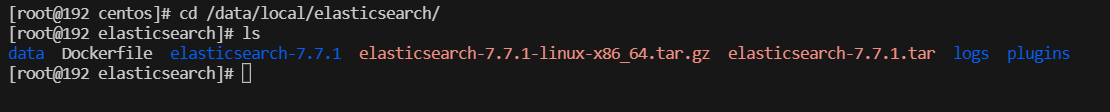

# 解决es权限不足
sudo chown -R 1000:1000 /data/local/elasticsearch/data
sudo chmod -R 775 /data/local/elasticsearch/data

# 解决MongoDB无法远程连接
docker exec -it mongo bash
vim /etc/mongod.conf.orig
# 将其中的bindIp: 127.0.0.1注释掉# bindIp: 127.0.0.1 或者改成bindIp: 0.0.0.0 即可开启远程连接

# 解决rabbitmq无法启动（权限不足）
echo "YOUR_SECRET_COOKIE" | sudo tee /data/local/rabbitmq/.erlang.cookie
sudo chmod 400 /data/local/rabbitmq/.erlang.cookie
sudo chown 1000:1000 /data/local/rabbitmq/.erlang.cookie

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

vim /data/lcoal/nginx/nginx.conf
# 将以下内容粘贴（官方nginx.conf配置文件）
user  nginx;
worker_processes  auto;
error_log  /var/log/nginx/error.log warn;
pid        /var/run/nginx.pid;

events {
    worker_connections  1024;
}

http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile        on;
    tcp_nopush      on;
    tcp_nodelay     on;
    keepalive_timeout  65;
    types_hash_max_size 2048;

    include /etc/nginx/conf.d/*.conf;

    server {
        listen       80;
        server_name  localhost;

        # 根目录设置为默认的html路径
        root   /usr/share/nginx/html;
        index  index.html index.htm;

        location / {
            try_files $uri $uri/ =404;
        }

        error_page 500 502 503 504 /50x.html;
        location = /50x.html {
            root   /usr/share/nginx/html;
        }
    }
}

vim /data/lcoal/nginx/index.html
# 将以下内容粘贴值index.html（官方index.html文件）
<!DOCTYPE html>
<html>
<head>
    <title>Welcome to nginx!</title>
    <style>
        body {
            width: 35em;
            margin: 0 auto;
            font-family: Tahoma, Verdana, Arial, sans-serif;
        }
    </style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

1

tar -zxvf elasticsearch-7.7.1-linux-x86_64.tar.gz

1
2
3
4
5
6
7
8
9
10
11
12
13

FROM scratch
# 复制解压后的 Elasticsearch 文件到容器的指定目录
COPY elasticsearch-7.7.1 /usr/share/elasticsearch
# 设置工作目录
WORKDIR /usr/share/elasticsearch
# 暴露 Elasticsearch 默认端口
EXPOSE 9200 9300
# 设置 Elasticsearch 环境变量
ENV ES_JAVA_OPTS="-Xms512m -Xmx512m"
ENV discovery.type=single-node
ENV http.host=0.0.0.0
# 启动 Elasticsearch
CMD ["bin/elasticsearch"]

1
2
3
4

# 在当前目录下构建镜像，并命名为 elasticsearch
cd /data/local/elasticsearch
docker build -t elasticsearch:7.7.1 .
# 不要忘记最后一个点 '.' 并且点之前有一个空格

1

docker run -d --name elasticsearch -p 9200:9200 -p 9300:9300 elasticsearch:7.7.1

1
2
3
4

# 使用 curl 命令测试（可选）
curl http://localhost:9200
# 也可以直接在主机上访问
http://Docker宿主机 IP:9200/

1
2

cd /data/local/kibana/
tar -zxvf kibana-7.7.1-linux-x86_64.tar.gz

1
2

cd /data/local/kibana/
vi Dockerfile

1
2
3
4
5
6

FROM scratch
COPY kibana-7.7.1 /usr/share/kibana
WORKDIR /usr/share/kibana
EXPOSE 5601
ENV SERVER_HOST="0.0.0.0"
CMD ["bin/kibana"]

1
2

cd /data/local/kibana
docker build -t kibana:7.7.1 .

1

docker run -d --name kibana -p 5601:5601 kibana:7.7.1
